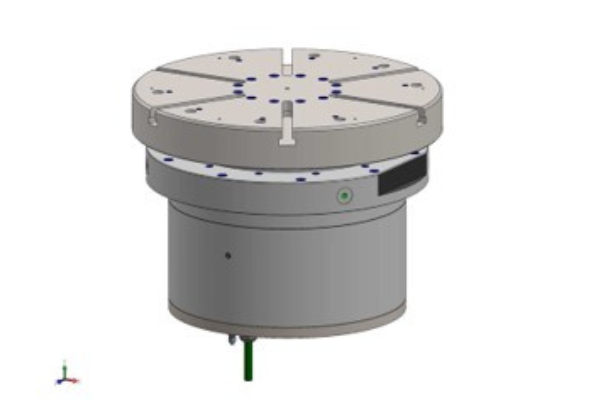

Rotary Indexing Unit


This unit is a rotary indexing table designed and manufactured for a dedicated grinding machine.
It is waterproof, so there is no problem even when processing while pouring processing fluid on the table.
In this case, a DD motor is used for indexing.
*This product is listed with the consent of the customer.
The design is performed on a waterproof rotary table. Angle indexing is also available.

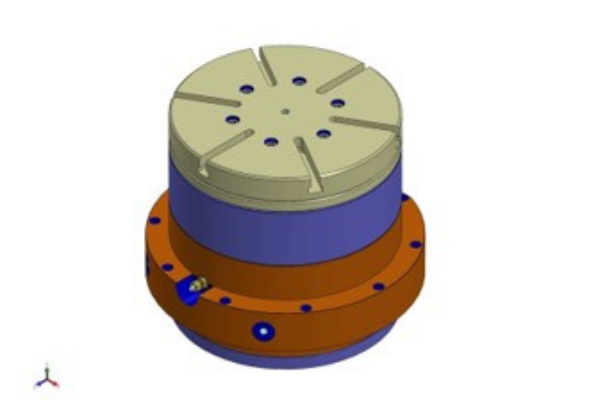

The model shown is a unit to be set on a grinding machine, MC, etc. and does not use a reduction gear. (DD motor)
Reduction gear specifications are also available, and are designed with a waterproof rotary table, and angle indexing is also possible. We can also manufacture rotary indexing units for wire EDMs.
■Waterproofed rotary table from design.
■Angle indexing is also possible.
■Specifications are available for use with grinding machines, MCs, wire EDMs, etc.
■Size can be made to order according to customers’ requests (actual results are table size Φ300 or smaller)
